Plant

specialist

Our capacity is provided by a wide range of machines and assisted by an assembly unit and a design – programming office.

All our machines are able to produce various mechanical components in various industrial sectors (aeronautics, aerosols, food, paper-technical, packaging, medical supplies, hydraulic) according to the quality required by the customer.

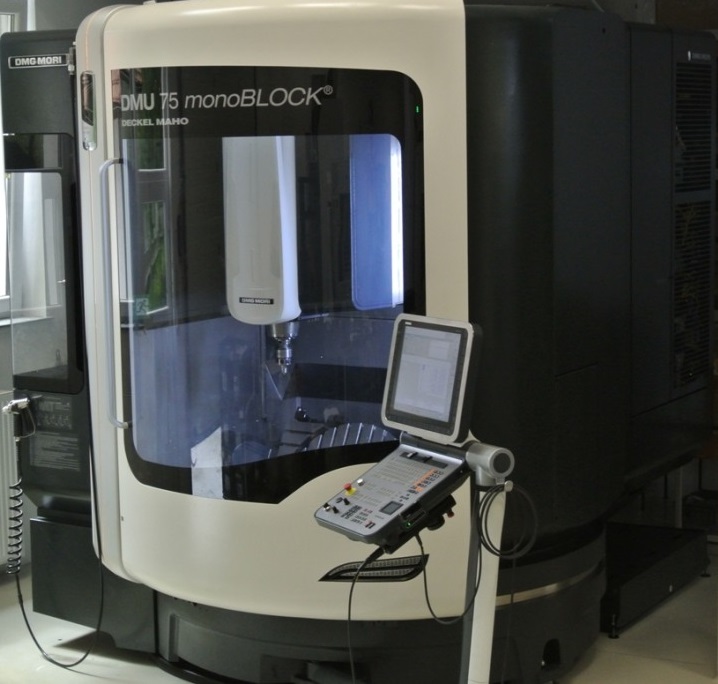

MACHINING CENTER DMG DMU 75 MONOBLOCK

5 AXES IN CONTINUOUS
CHUCK SPEED 20.000 G / MIN
CHANGE TOOLS 60 POSITIONS
Axis X = 650 mm
Axis Y = 750 mm
Axis Z = 560 mm

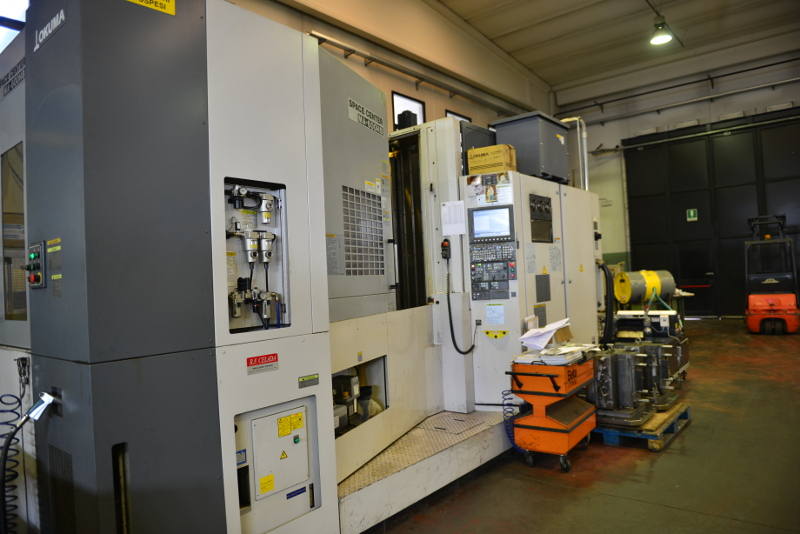

HORIZONTAL MACHINING CENTRE OKUMA MA-600HB

CHUCK 6000 G / MIN. ISO 50
Multipallet 2 POSITIONS DIM. 630 mm.
Axis X = 1000 mm
Axis Y = 900 mm
Axis Z = 1000 mm
IV AXIS indexed. 360 POSITIONS
  UNIVERSAL MACHINING CENTRE DMG DMC 80 U DuoBlock

5 AXES IN CONTINUOUS
2 PALLETS (Ø800mm X 630mm)
18.000 G SPINDLE /MIN. HSK A-63
Axis X = 800 mm
Axis Y = 800 mm
Axis Z = 800 mm
CHANGE TOOLS 60 POSITIONS
MACHINING CENTRE MICRON UCP 1150

5 AXES IN CONTINUOUS
12000 G SPINDLE/MIN. ISO 40
Axis X = 1000 mm
Axis Y = 1750 mm
Axis Z = 700 mm WITH HEAD A 90° Axis Z=895 mm

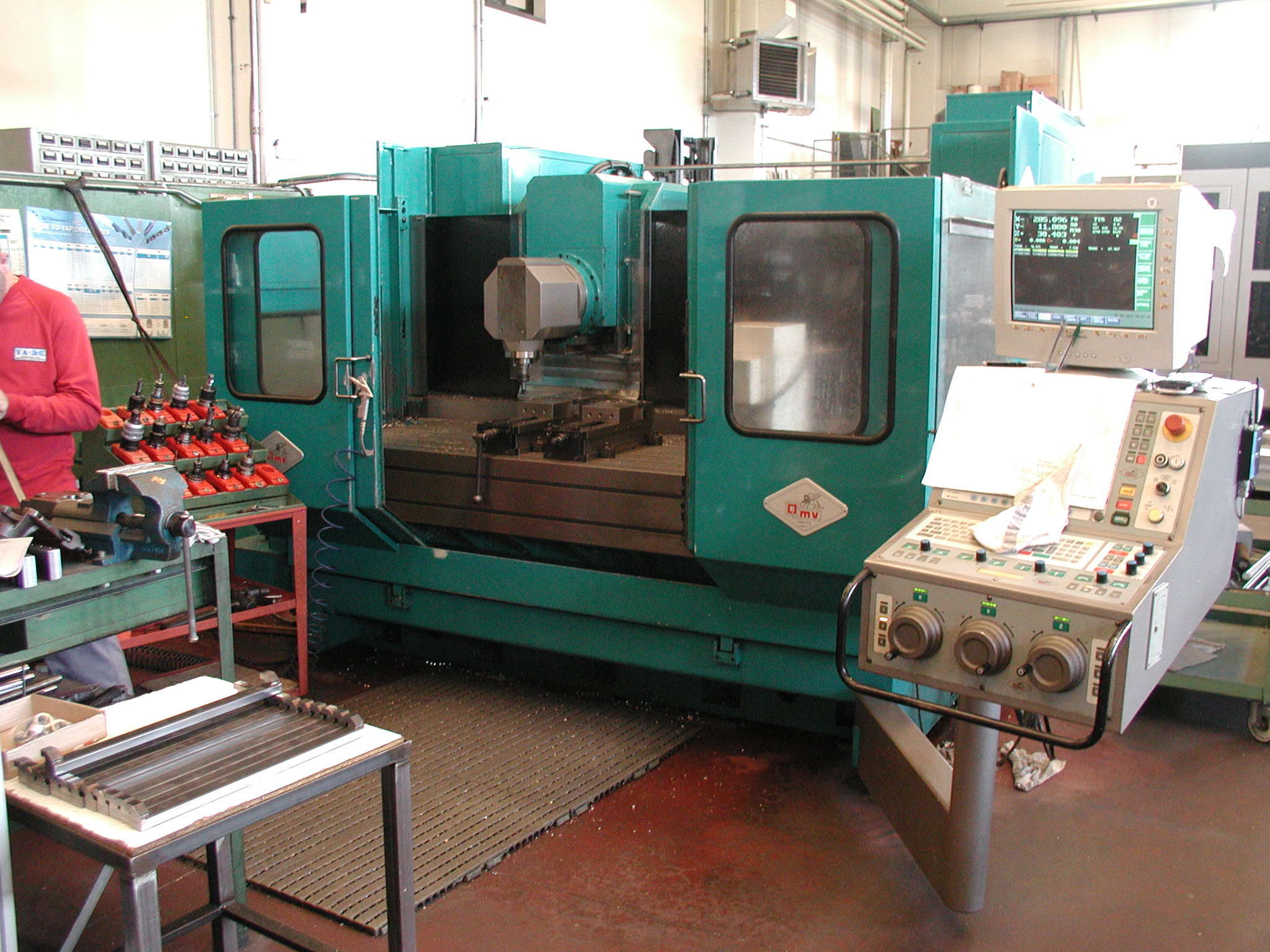

OMV FIXED BENCH mod. BFC 1300

HEAD IN CONTINUOUS +/- 90°
TSUDAKOMA TABLE Ø 300 IN CONTINUOUS
6.000 G SPINDLE/MIN. ISO 40
Axis X = 1300 mm
Axis Y = 600 mm
Axis Z = 550 mm

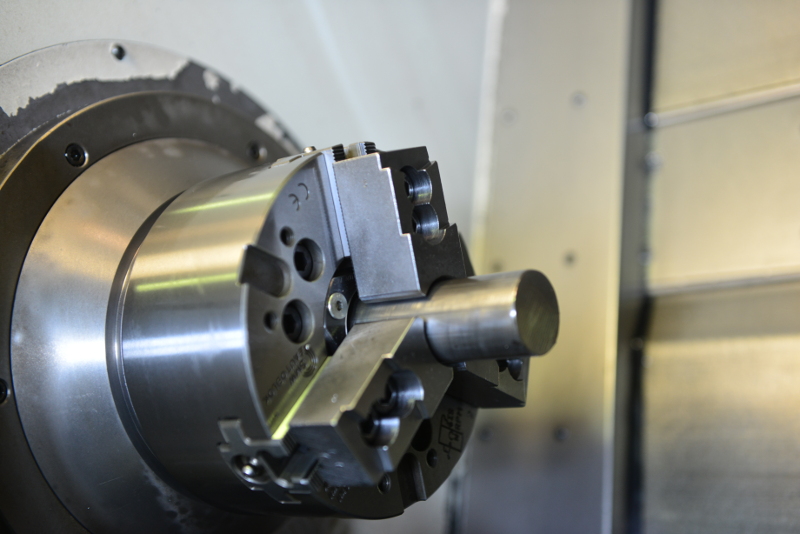

GILDEMEISTER LATHE CTX 310

TURNING DIAMETER mm. 260
MAX X TRAVEL mm. 455
CENTER IN CYCLE
AND CHUCKS mm. 160
6.000 G/1’

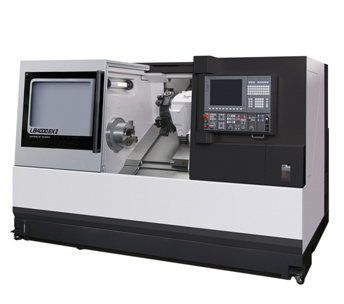

OKUMA LATHE mod. LB 4000 MYC

TURNING DIAMETER mm. 430 swing Ø670
MAX Z TRAVEL mm. 1.500
Y CORSE ± 70MM.
CENTER IN CYCLE
AND CHUCKS mm. 400
3.000 G/1’

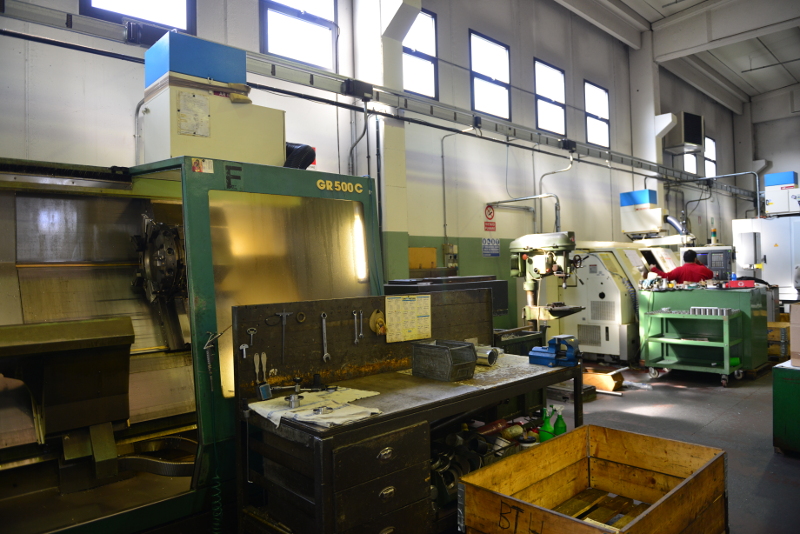

MAHO GRAZIANO LATHE mod. GR 500 C

TURNING DIAMETER mm. 500
MAX X TRAVEL mm. 1.500
CENTER IN CYCLE
AND CHUCKS mm. 315
3.000 G/1’
MACHINING CENTRE MICRON UCP 1150

TURNING DIAMETER mm. 350
MAX X TRAVEL mm. 1.000
CENTER IN CYCLE
AND CHUCKS mm. 250
TANGENTIAL GRINDING ROSA LINE AVION 11.7 CNC
LONGITUDINAL STROKE = mm. 1.200
TRANSVERSAL STROKE = mm. 750

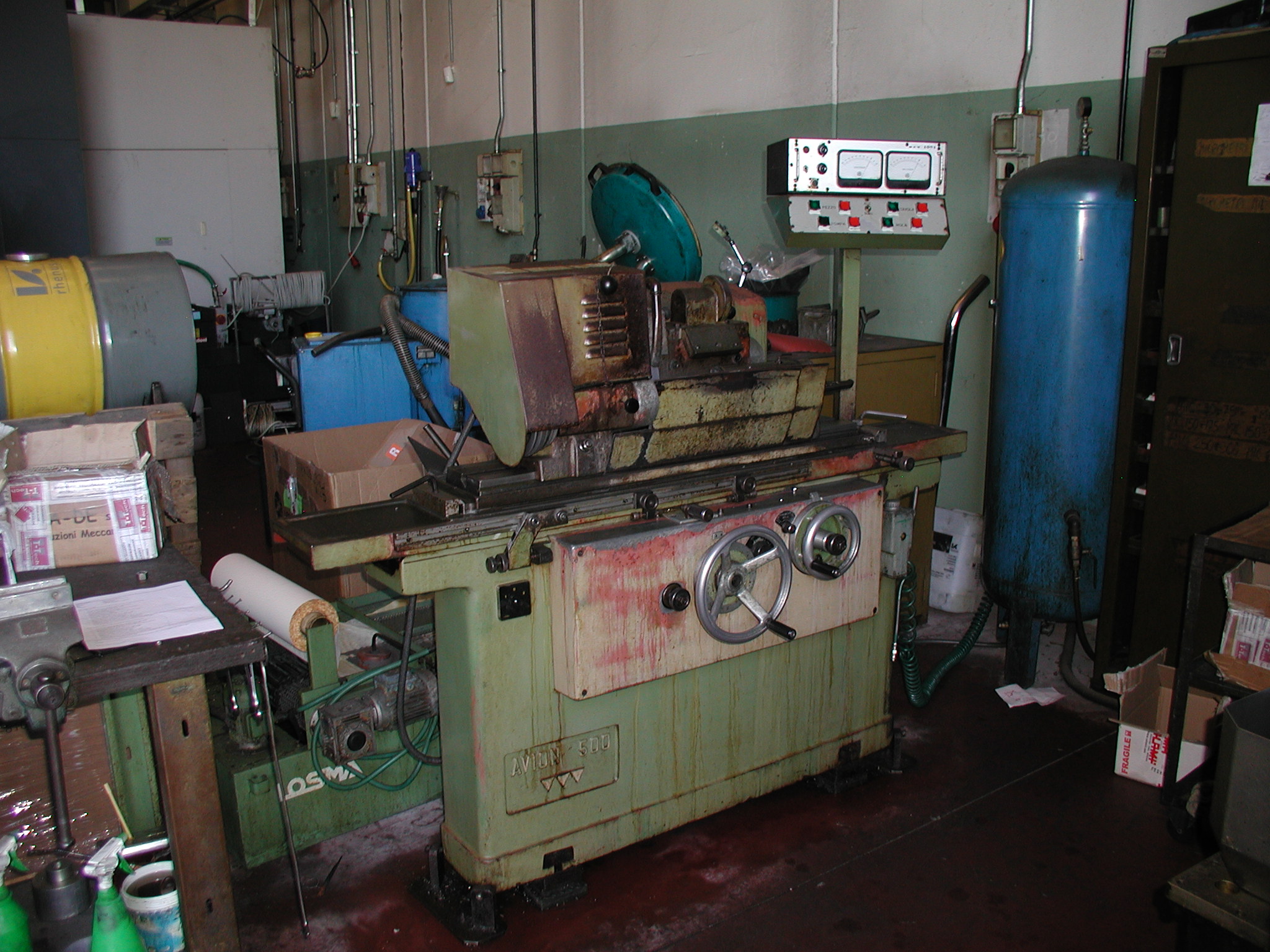

UNIVERSAL GRINDING AVION mod. 500

AXIS X = GRINDING mm. 500

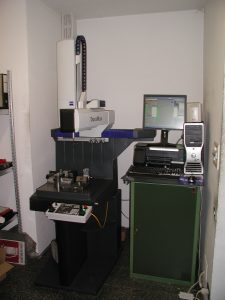

Duramax ZEISS

MEASURING RANGE: 500X500X500mm
PIECE MAX. WEIGHT : 100 Kg
ACCURACY: 18 – 26 °C 2,7 µm + L/250

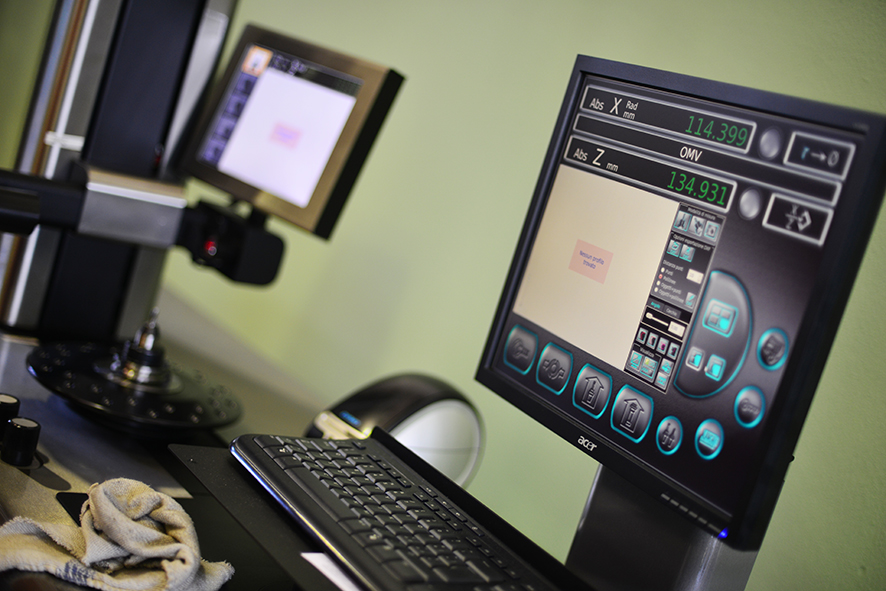

TOOLS MEASURING and PRE-REGISTRATION MACHINE MOD. AMON RA ISO50

Measuring range: maximum diameter of 600 mm (range 300 mm)
max height 600 mm
ELBO CONTROLS type SLIDE 371
Resolutions axes: X = 1 um Z = 1 um

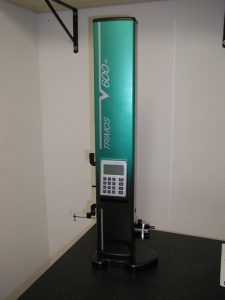

TRIMOS ALTIMETER V600+

MEASURING RANGE : 0-835 mm
RESOLUTION : 0.01/0.001 mm
ACCURACY : 3µm + (L mm/300)= µm
SYLVAC ALTIMETER Z CAL 300

CHECKING RINGS AND BLOCKS SELECT
GRANITE PLANE A CLASS 1200 x 800

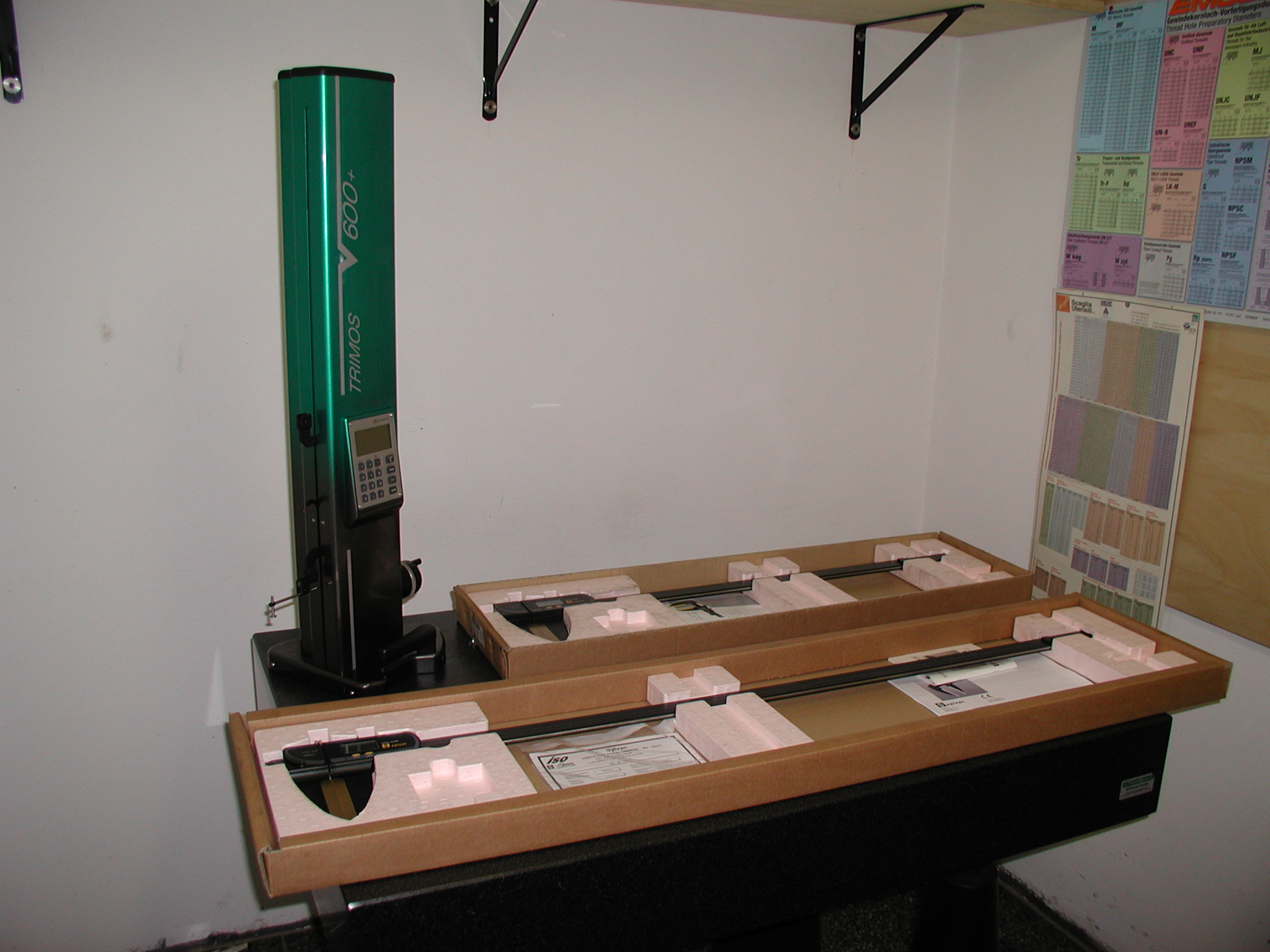

DIGITAL GAUGES SYLVAC UL 1000 UL 600
